Superior Characteristics of SEPIO

1
High efficiency in adsorption of aldehydes to keep effective adsorption
even in law concentration.
2 Applicable for almost all odor substances and hazardous gas.
3 Honeycomb unit structure
4 Reusable frame
1. High efficiency in adsorption of aldehydes to keep effective adsorption
 even in law concentration.
SEPIO shows excellent adsorption performance for aldehydes which activated carbon can not capture.
・

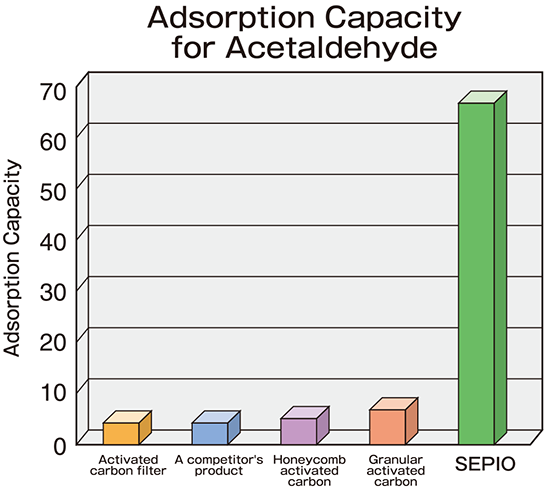

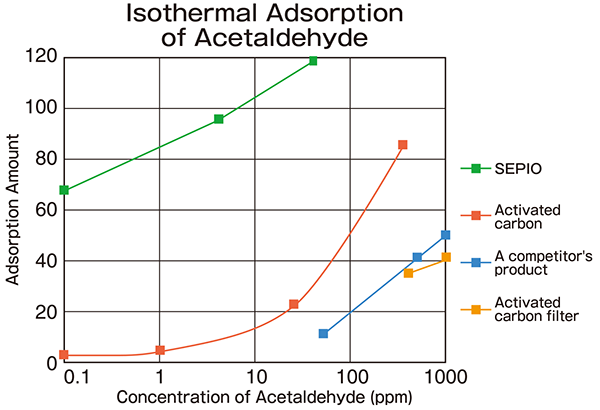

Adsorption performance comparison of acetaldehyde
SEPIO keeps effective adsorption of aldehydes not only in high concentration area but also in low concentration place. You can apply deodorization filter of SEPIO for plant, office and home.
・
SEPIO is for Deodorization of Aldehydes

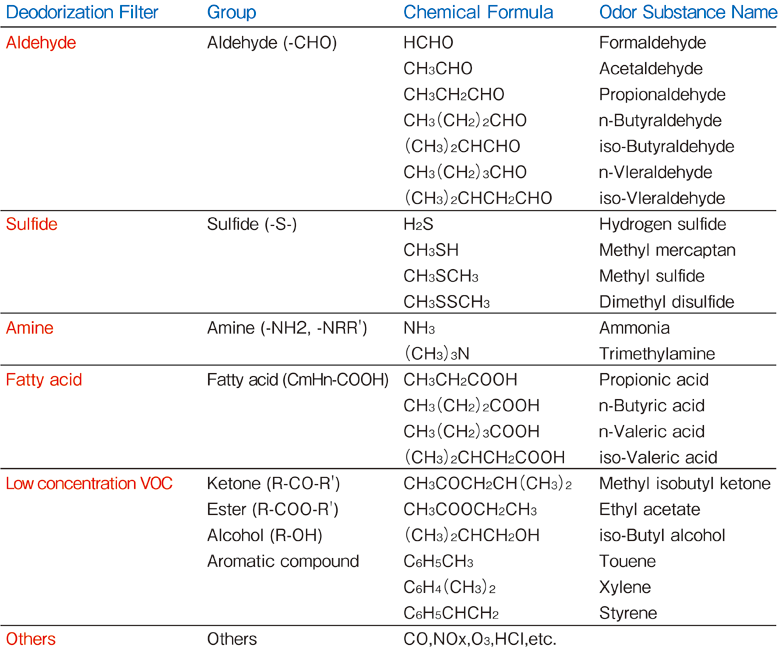

2. Applicable for almost all odor substances and hazardous gas.
・
Combining with activated carbon, you can use SEPIO for many type of odor and hazardous gas.

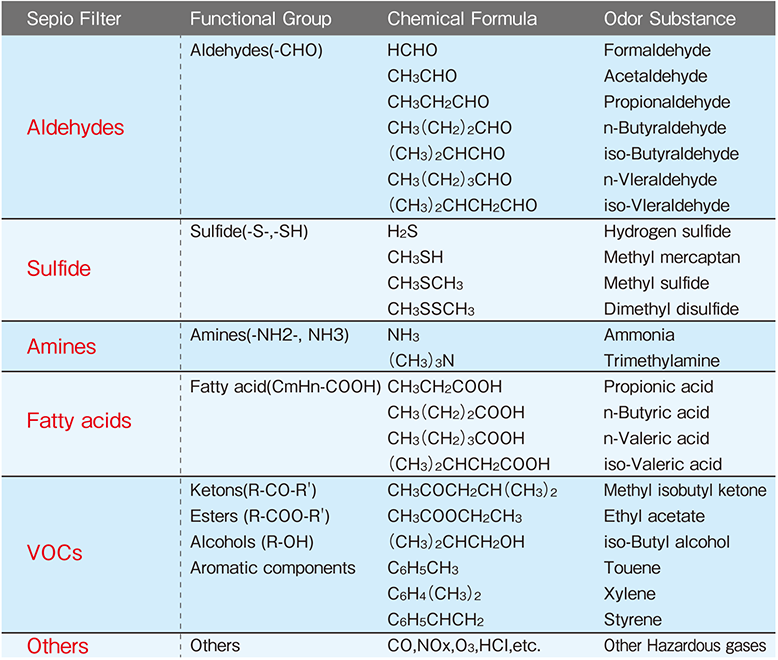

/HCHO/CH3CHO/CH3CH2CHO/CH3(CH2)2CHO/(CH3)2CHCHO/CH3(CH2)3CHO/(CH3)2CHCH2CHO /H2S/CH3SH/CH3SCH3/CH3SSCH3 / CH2COOH/CH3(CH2)2COOH/CH3(CH2)3COOH/(CH3)2CHCH2COOH /CH3COCH2CH(CH3)2/CH3COOCH2CH3/(CH3)2CHCH2OH/C6H5CH3/C6H4(CH3)2/C6H5CHCH2 /CO,NOx,O3,HCI,etc.

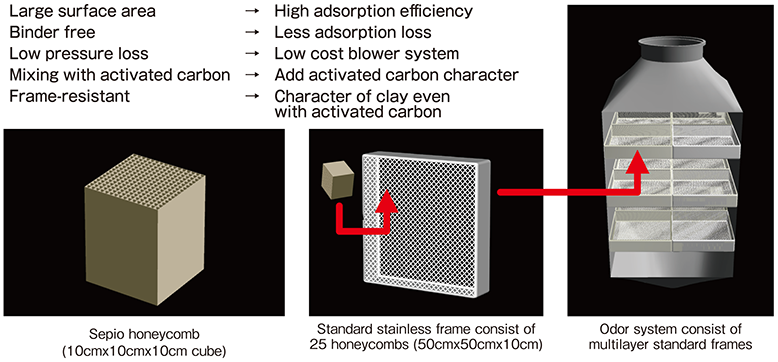

3. Honeycomb unit structure
Lower pressure loss   ▶ Lower system cost Binder free               ▶ Longer life  Mixing with activated carbon  ▶ Easy to add of activated carbon character Hard to burn               ▶ Difficult to burn with even activated carbon

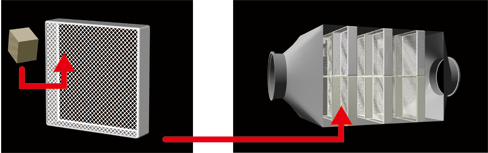

A Honeycomb filter unit (10x10x10cm)
A standard stainless frame consist of
25 filters (50x50x10cm)

A Honeycomb filter unit (10x10x10cm)
A standard stainless frame consist
of 25 filters (50x50x10cm)
We design the actual deodorization system by integrating the frames
Lower Pressure Loss

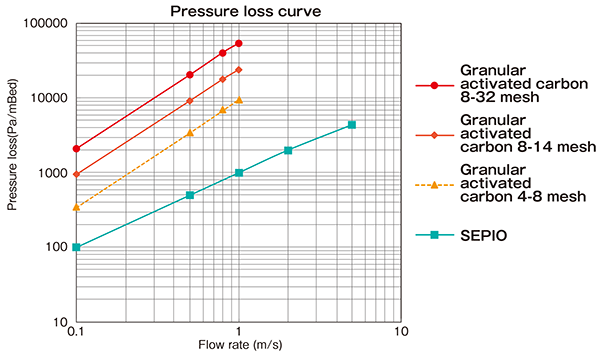

Pressure Loss Curve
4 .  Reusable frame
SEPIO is reusable, while activated carbon is disposable. SEPIO shows lower running cost compared to activated carbon and is environment friendly filter.
・


5 . SEPIO is a kind of clay and hard to burn
Activated carbon is easy to burn because it is made of carbon. If you use it to adsorb VOC or gas including oil, you have high possibility to burn the filter.
SEPIO is made from a kind of cray and hard to burn. You can apply it to adsorb VOC with relatively low concentration.
・

Inventor of SEPIO

Doctor of Engineering/Tamio Noda
Doctor of EngineeringTamio Noda
1972.4 Graduated from the University of Tokyo, department of metallurgy
1972.5 Started working at ex-Nippon Steel Corporation, Nagoya Works
In charge of R&D for Iron making and new material
1998.6 Joined with Sepiotec Co.Ltd.
2004.2 Granted doctoral degree from the University of Tokyo
2010.4 Senior director of Sepiotec Co.Ltd.
